How to use Task Manager ​

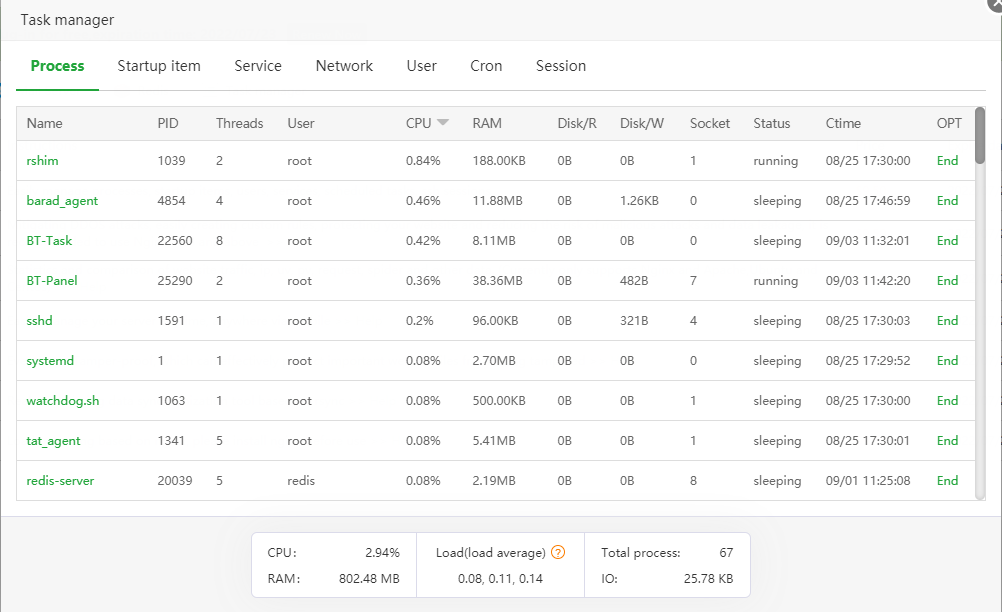

1. Process ​

alt text

alt text

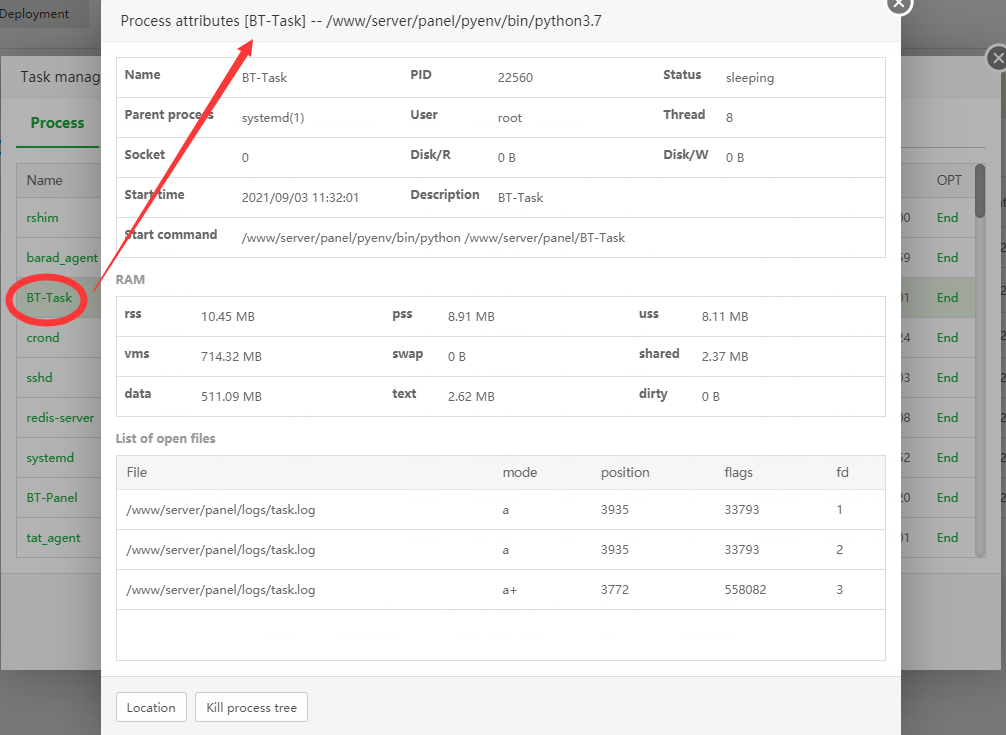

Describe: Track the CPU/memory/disk usage of each process, click on the process name to view more detailed information about the process

Sort: By default, in descending order of CPU usage, users can click on the header of each column to sort

Glossary:

  • Disk/R | Disk/W : the speed at which the process reads and writes to the disk per second

  • vss : memory allocated but not actually used (including memory occupied by shared libraries)

  • rss : Actual physical memory used (including memory occupied by shared libraries)

  • pss : physical memory actually used (proportional allocation of memory occupied by shared libraries)

  • uss : physical memory occupied by the process alone (not including memory shared across processes)

  • swap : The size of the swap area (virtual memory) occupied by the process

  • Load average : Display the average load of the system for 1 minute, 5 minutes, and 15 minutes

End the process tree: End all child processes

Recursively terminate all parent processes except for critical system processes

End all processes with the same name

List of open files: All files that have been opened by the current process

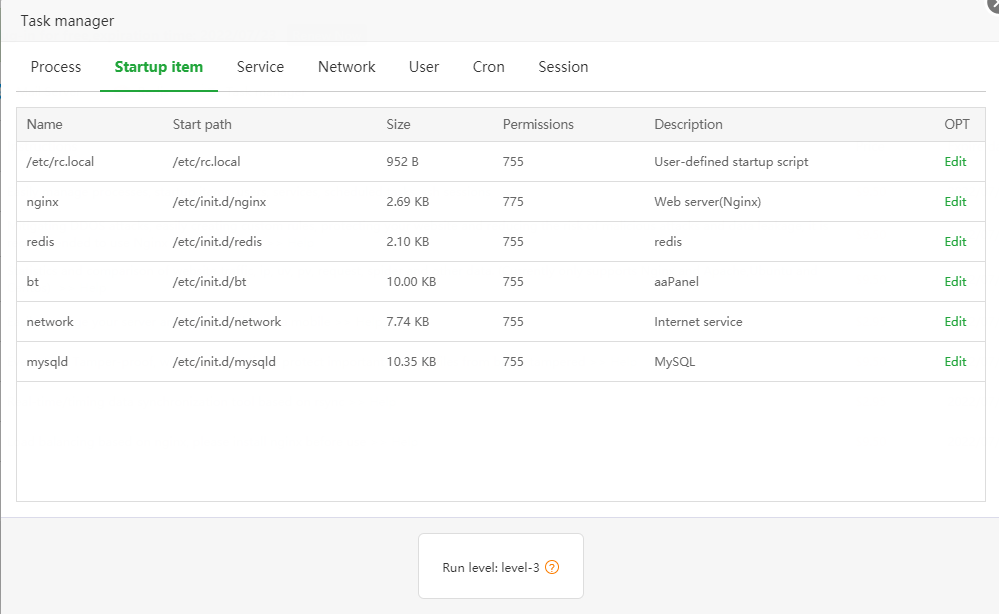

2. Startup item ​

alt text

Describe: List all items started with the system, including init service, user-defined startup script

Edit: Through the online editor, you can view or modify all startup scripts, which is convenient for users to quickly find and exclude malicious scripts

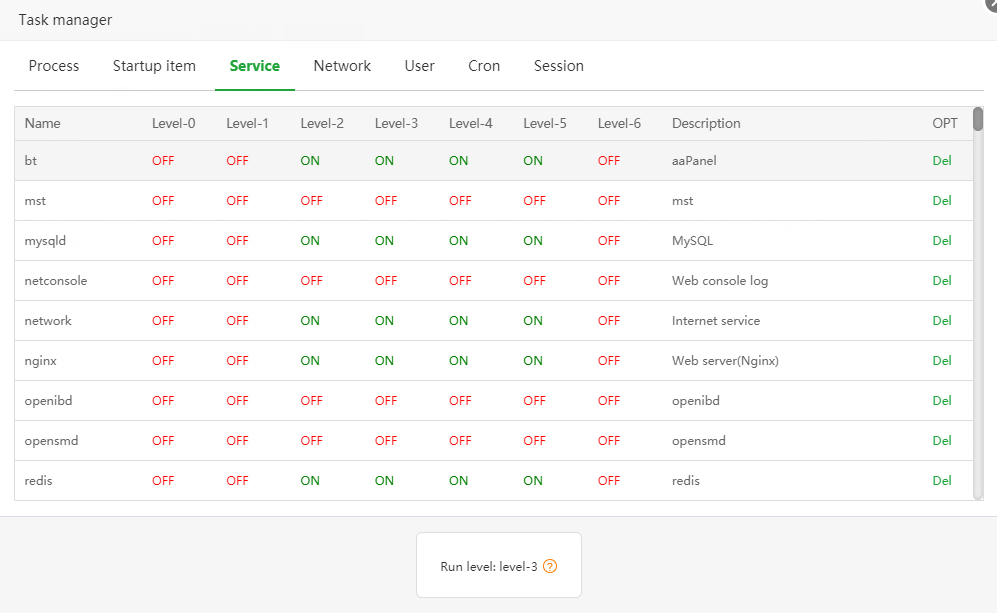

3. Service ​

alt text

Run level: Each service has a corresponding run level setting. If the corresponding run level is set to open, it means that the system will start the service at the corresponding run level. The status of each run level is listed below

  • Level-0 : Shut down

  • Level-1 : Single user mode

  • Level-2 : Multi-user mode without network

  • Level-3 : Full multi-user mode in command line mode (the server usually runs in this mode)

  • Level-4 : The system is not used

  • Level-5 : Graphical GUI mode (some systems with GUI installed will automatically enter this mode)

  • Level-6 : Restart

Delete service: The panel first tries to use the stop command to stop the service, and then delete the service

Note: It is not currently supported to directly delete the services hosted by Systemctl

Set the run level status: You can set whether each service is started at the specified run level, and the services managed by Systemctl only support setting the status of the current run level of the system.

Warning: Please do not arbitrarily modify the run level status of system services, and do not easily assign third-party services to Level-0 or Level-6 run levels. This may cause your system to fail to start normally.

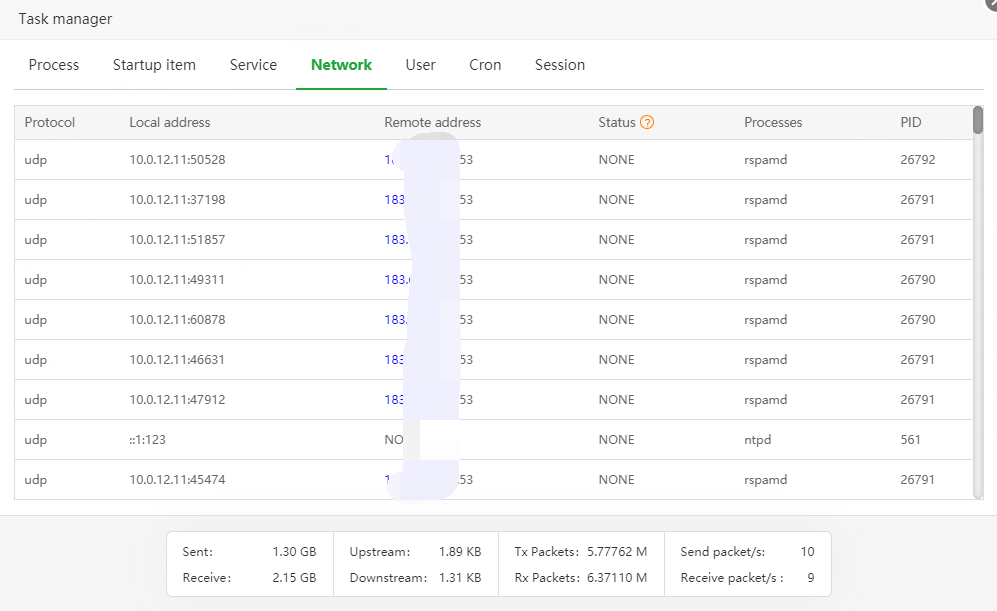

4. Network ​

alt text

Describe: Quickly view the current server network status

State name explanation:

  • LISTEN : monitor status, waiting for user connection

  • TIME_WAIT : The server actively closes the connection and will automatically release resources after 3 times the connection life cycle

  • CLOSE_WAIT : The client actively closes the connection and waits for the server to release resources

  • ESTABLISHED : The connection that is communicating normally

  • NONE : UDP connection

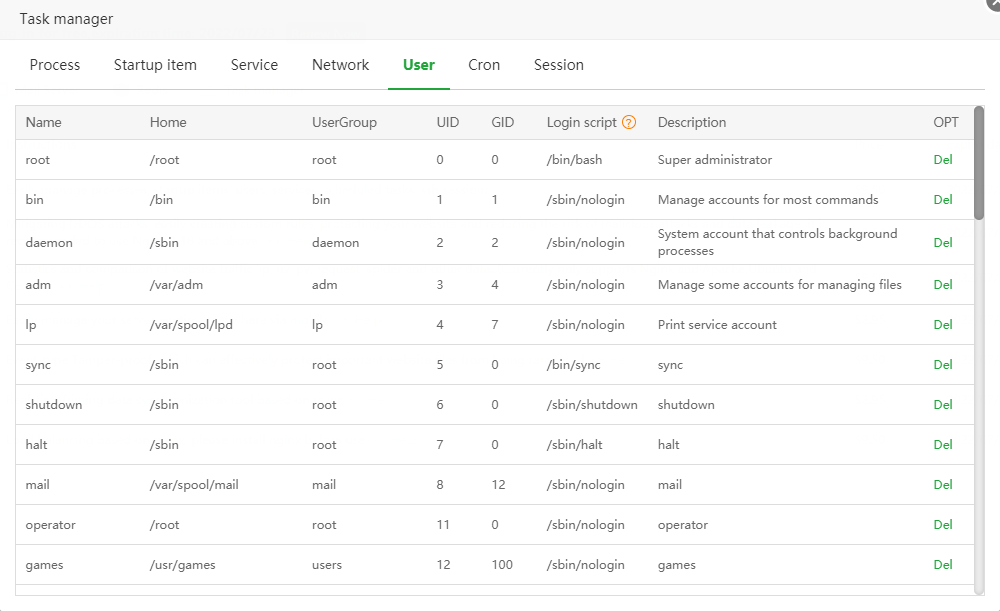

5. User ​

alt text

Glossary:​

  • home : the user's home directory

  • uid : the unique identifier of the user in the Linux system

  • gid : the unique identifier of the user group in the Linux system

Login script:

The script that runs when the user logs in to the system

  • /bin/bash : After logging in, process the bash command line

  • /sbin/nologin : Login is prohibited

  • /bin/false : Login is forbidden, and the use of any services is also forbidden

  • /sbin/shutdown : shutdown script

  • Other : Custom script

Delete users:
The program will try to delete the user. If it detects that a process is using the user, it will end the process before deleting it. Note: By deleting the user here, the program will end all the processes using the user without dying until the user is successfully deleted

Warning: Deleting a user arbitrarily will cause the software that depends on the user to be abnormal, please operate with caution

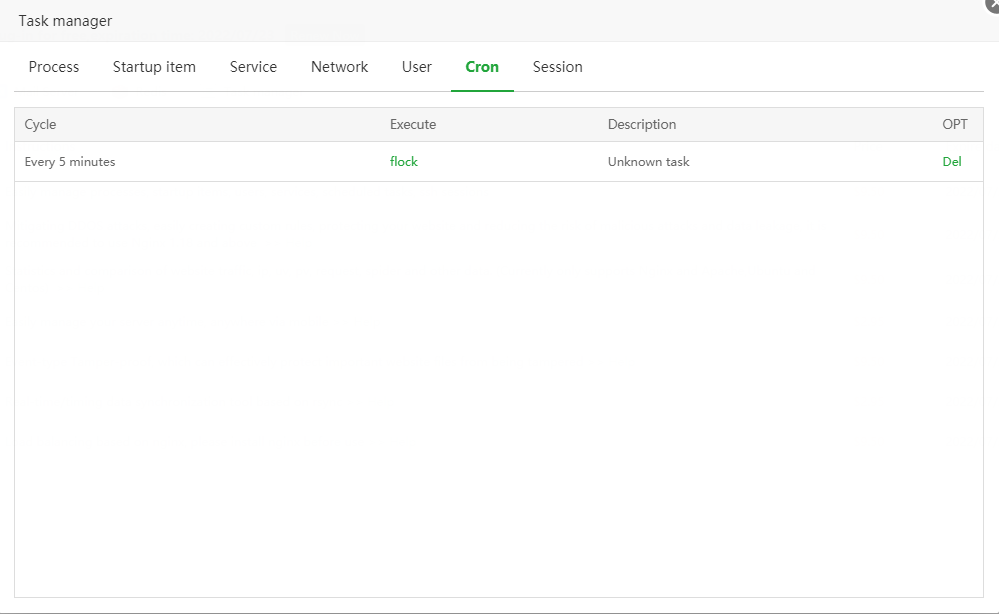

6. Cron ​

alt text

Describe:

Analyze all scheduled tasks in the crond service, users can view the task cycle, content, or delete the specified task

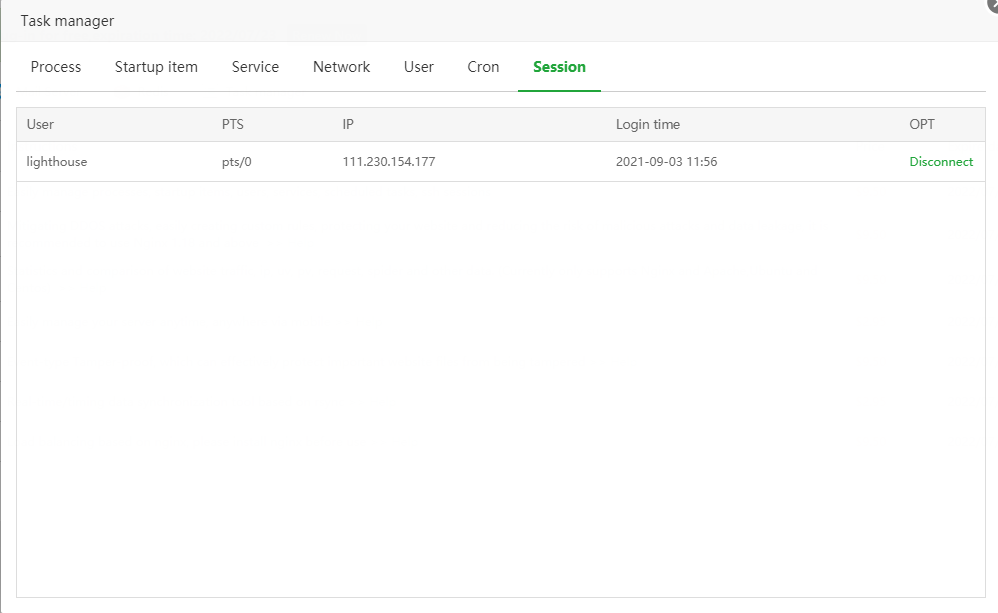

7. Session ​

alt text

Describe: List the current sessions that have successfully logged in to the system via SSH

Disconnect: Directly forcibly interrupt the specified session

Warning: Forcibly interrupting the session will also interrupt the operation being performed in the session, please operate with caution
